The latest design in beading technology is now available. Since beading is consistently replacing cross braking to stiffen ductwork against vibration and “bellying”...... |

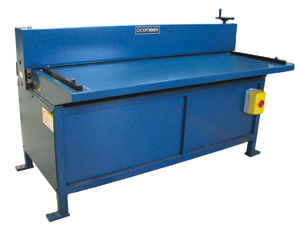

LOCKFORMER BEADER 6016/6020
When the job calls for heavy--duty "gaints", this machine tool is it. With this 6016 Beader, only one operator is needed to produce SMACNA-approved beads 4 to 5 times faster than cross braking . It forms 5 beads , on 12 " centers , adjustable to 1/8" depth. Maximum capacity is 16 gauge material and one operator can easily handle sheets up to 60" wide.
|
|
The latest design in beading technology is now available. Since beading is consistently replacing cross braking to stiffen ductwork against vibration and “bellying”, the 6020 Beader combines structural integrity with demanding performance qualities. It forms “ offset ” beads on 12” centers. Adjustable entrance gauge bars allow fittings or sheets to be beaded from 24” to 60” widths.
|
Adjustable entrance gauge bars |
Machine Specifications
Item
|
Paratemer
|
Thickness (mm) |
Max. 1.00 |
Wide (mm) |
610-1525 |
Material |
Galvanized Mild Steel |
Speed (m/min) |
12 |
Power (Kw) |
1 |
Voltage (V) |
220 |
Phase (P) |
1 |
Frequency (Hz) |
50 |
Drive |
Chain |
Dimensions (mm) |
1086 long × 2020 wide × 818 high |
Weight (Kg) |
743 |
Forming Specifications
Item
|
Paratemer
|
Adjustable
|
Max. Bead Distance (mm) |
305 |
76-305 adjustable |
Min. Bead Distance (mm) |
76 |
76-305 adjustable |
Bead Qty. (strip) |
5 |
adjustable |
Bead Depth (mm) |
3.18 |
adjustable |
|
