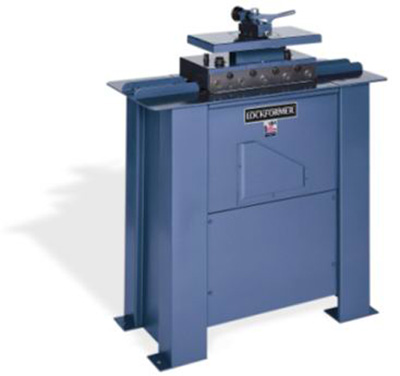

LOCKFORMER PITTSBURGH LOCK MODEL 20



The Model 20 Pittsburgh rollforming machines have 5 forming stations with 2 forming positons. One inboard forming position forms the Pittsburgh lock and one auxiliary or outboard forming position has the capability of forming 1 of 3 different profiles.
Standard with  Lockformer  quality  construction, these machines have Baldor motors; high  precision  needle-type bearings; heavy  ¾” chassis plate; case-hardened and ground roll  shafts; and arc-welded steel stands protected  with  Lockformer’s  top-quality  primer  and paint finish. Emite  grease  fittings are  easily accessible from  a central lubrication panel.

Pittsbrugh Lock profile

Optional auto-guide power  flanging attachment

Pittsburgh Lock profile

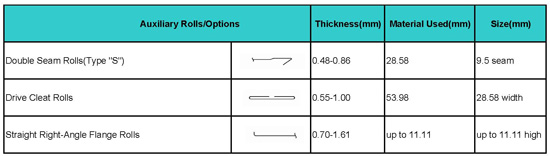

Auxiliary Rolls Specifications
