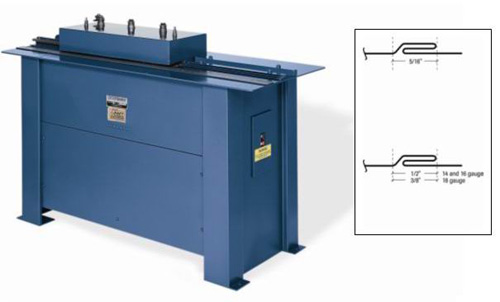

LOCKFORMER PITTSBURGH LOCK MACHINE MODEL 16


These powerful  performers offer  the HVAC industry day-in/day-out service. The 16 gauge Pittsburgh Lock machines have 7 forming stations with 2 forming position. One position  forms  the  Pittsburgh  Lock, while  an  auxiliary or outboard position has the ability of forming 1 of 8 profiles depending on the contractor's needs.
Standard with  Lockformer  quality  construction, these machines have Baldor motors; high  precision  needle-type bearings;  heavy  ¾”  chassis plate;  case-hardened and ground  roll  shafts;  and arc-welded  steel  stands protected  with Lockformer’s  top-quality primer and paint finish. Emite grease fittings are easily accessible from a central lubrication panel.

Machine Specifications

Item

 Paratemer

Forming Station 7
Thickness (mm) 1.5
Material Galvanized mild Steel
Depth of Pocket (mm) 12.7
Edge Adjustable (mm) 9.5
Forming Speed (m/min) 12.61
Power (Kw) 3
Voltage (V) 380
Phase (P) 3
Frequency (Hz) 50
Drive Chain
Dimensions (mm) 1486 long× 610 wide× 1042 high
Weight (Kg) 282

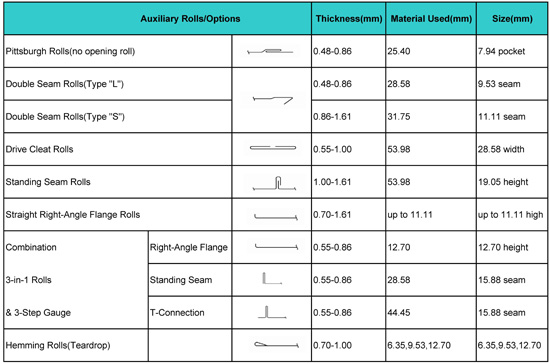

Auxiliary Rolls Specifications
